AMPLIFIER P3

AMPLIFIER P2 / 85 Nm

Power and range – uphill and down.

Whether it's technical uphill sections or radical downhill lines – the AMPLIFIER P2 delivers maximum performance for demanding riders. Equipped with the Shimano EP801 motor and a solid 85 Nm of torque, it tackles every challenge with effortless ease.

The NOX high-performance aluminum frame with Integrated Suspension Technology ensures ultimate stability and control. With 180 mm of travel up front and 170 mm in the rear, you’ll glide over any obstacle, while the mullet setup (29”/27.5”) strikes the perfect balance between smooth rolling and agility.

Thanks to the BMZ V10 / 820 Wh removable battery, long tours are no problem – more range, more adventure, more freedom. Cutting-edge tech like the Shimano Cycle Computer E-TUBE PROJECT app allows for fully personalized setup adjustments.

Features like flip chip dropouts, Boost standard, integrated cable routing, and a hydraulic dropper post make the AMPLIFIER P2 a true high-end E-Enduro machine.

AMPLIFIER P2 – your perfect tool for maximum performance on any trail.

NOX Aluminium Frame

Extremely stiff and engineered for maximum loads in hard enduro use.

180–190 mm Travel

Massive reserves for rock gardens, big drops and flat-out riding through root sections.

BMZ RS Drive Unit – 112 Nm

Powerful yet well-controlled drive for the steepest climbs and instant acceleration when you need it.

BMZ UR-V10 Battery with 800 Wh (48 V)

High capacity for long climbs and extended rides.

Enduro-MAX Suspension Setup

Designed for stability at high speeds and hard impacts.

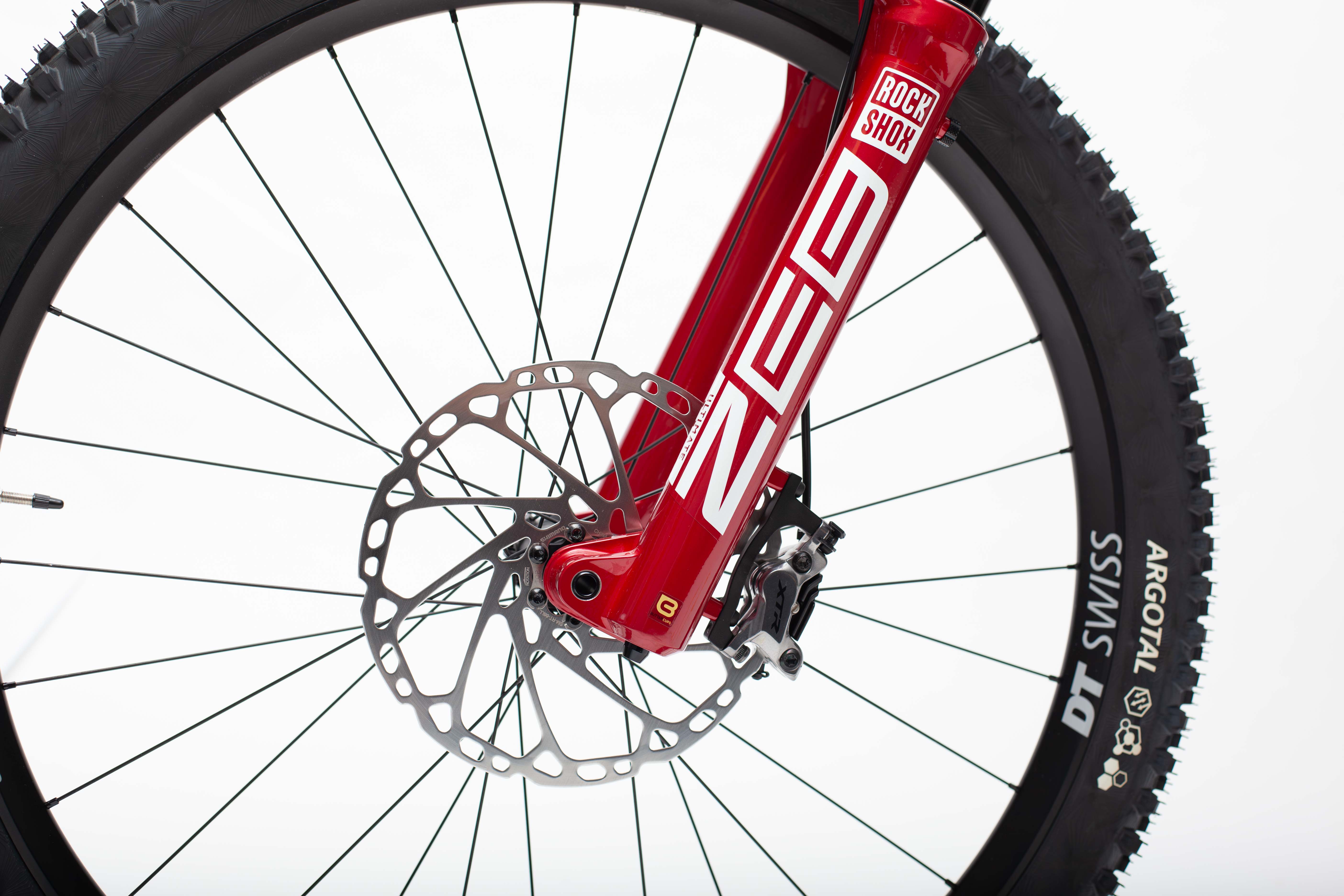

RockShox ZEB / FOX 38

Robust fork platforms built for uncompromising downhill performance.

Mullet Setup (29” / 27.5”)

Composure and precise tracking at the front, agility and freedom of movement at the rear.

E-bike Specific High-End Components

Engineered to withstand demanding, long-term heavy use.

	Core	Ultra selected
Frame	NOX Amplifier P3 BMZ RS	NOX Amplifier P3 BMZ RS
Motorset	BMZ RS / 112Nm	BMZ RS / 112Nm
Battery	BMZ UR-V10 (48V, 17Ah, 800Wh)	BMZ UR-V10 (48V, 17Ah, 800Wh)
Fork	ROCK SHOX Domain Gold RC 29 LB 180mm Travel BLK 44 C1	ROCK SHOX Zeb Ultimate 29" 190mm 44mm OS maxle stealth "electric red"
Stem	RACE FACE Chester 35x 40mm	RACE FACE Atlas 35 35mm
Grips	TATZE Sport grip	TATZE Sport grip
Saddle	REVERSE Components	REVERSE Components
Headset	NOX Components ZS44/56	NOX Components ZS44/56
Cassette	SHIMANO LG 700 Linkglide, 11-speed, 11-50T	SHIMANO XT CS-M8100 12-speed 10-51T
Crankset	NOX Components ISIS 165mm	NOX Components ISIS 165mm
Handlebar	RACE FACE Chester 35 20mm	RACE FACE Atlas 35 20mm
Rear tire	CONTINENTAL Argotal-Trail Endurance 27,5"	CONTINENTAL Argotal Enduro Soft 27,5"
Seat Post	LIMOTEC A1, 30,9	ROCK SHOX Reverb AXS, 30,9
Front tire	CONTINENTAL Argotal-Trail Endurance 29"	CONTINENTAL Argotal Enduro Soft 29"

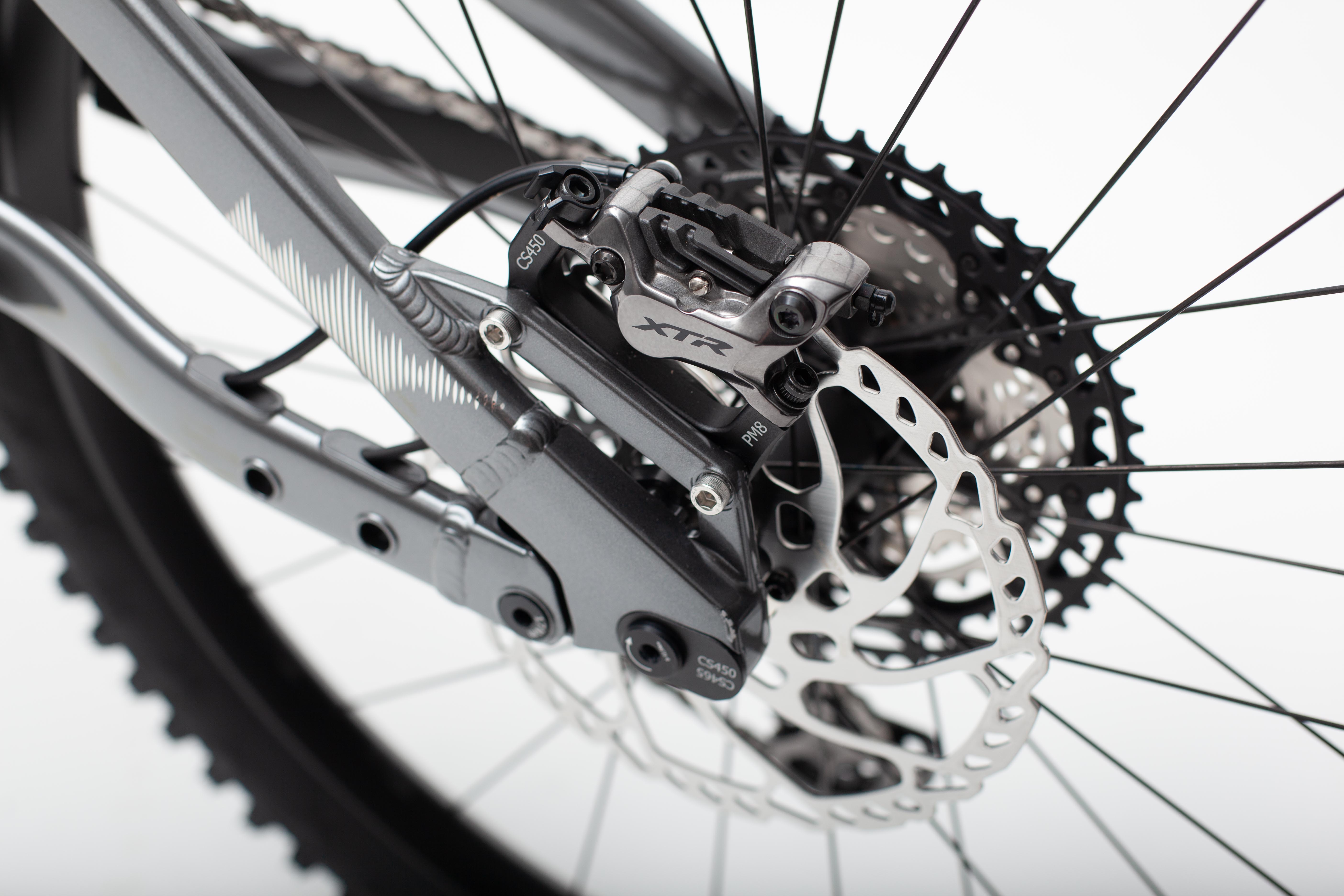

Rear brake	SHIMANO BL-M6100/BR-M6120	SHIMANO XTR BL-M9120/BR-M9120

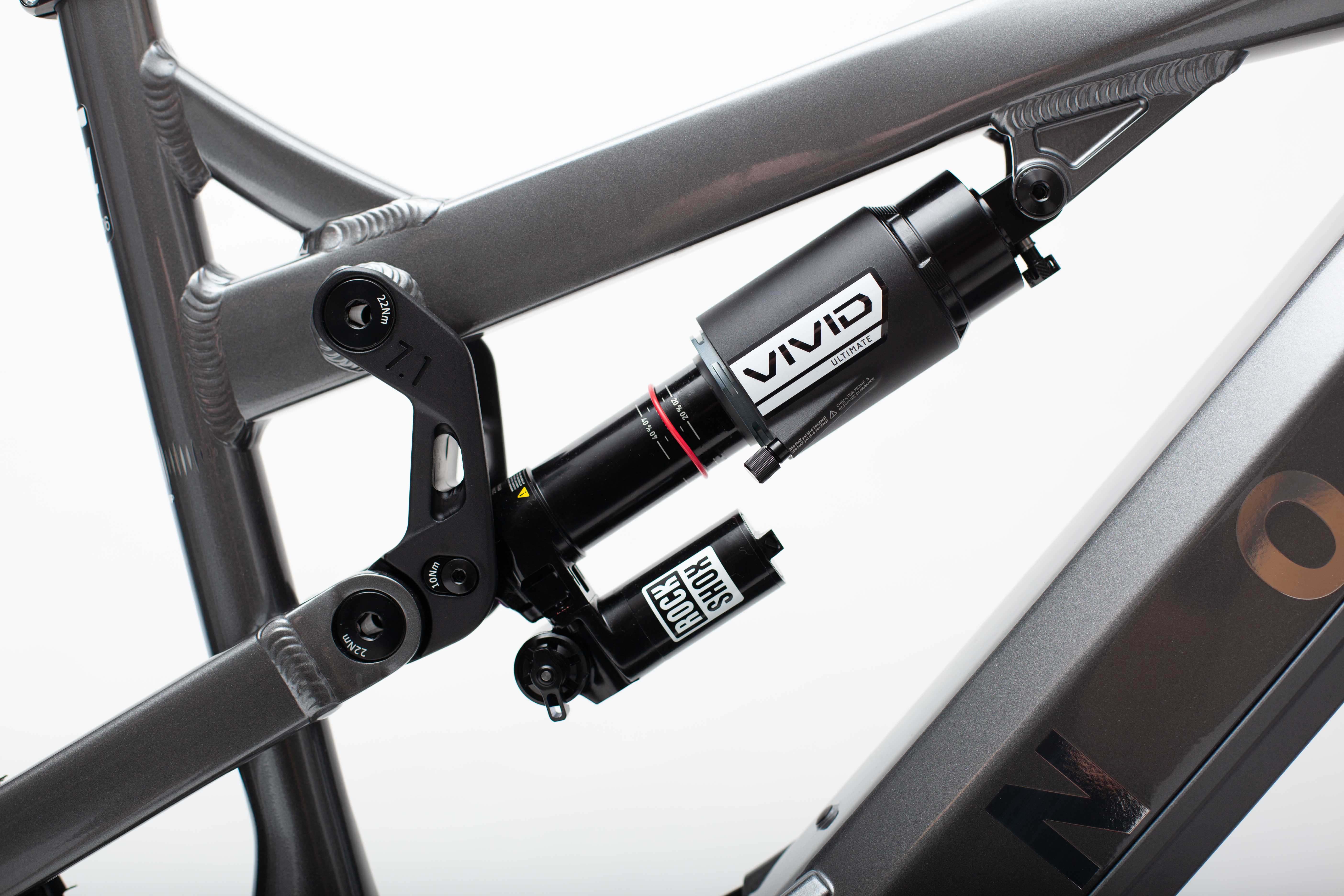

Rear shock	ROCK SHOX Super Deluxe Select 230x60mm	ROCK SHOX Vivid Ultimate 230x60 RC2T
Rear Wheel	DT SWISS H1900 SP 27,5"	DT SWISS HX1700 SP 27,5"
Front brake	SHIMANO BL-M6100/BR-M6120	SHIMANO XTR BL-M9120/BR-M9120
Front Wheel	DT SWISS H1900 SP 29"	DT SWISS HX1700 SP 29"
Shifter right	SHIMANO Deore XT M8130 Linkglide 11-speed	SHIMANO XTR SL-M9100 12-speed I-spec EV
Rear brake disc	SHIMANO SM-RT66, 203mm	SHIMANO SM-RT66, 203mm

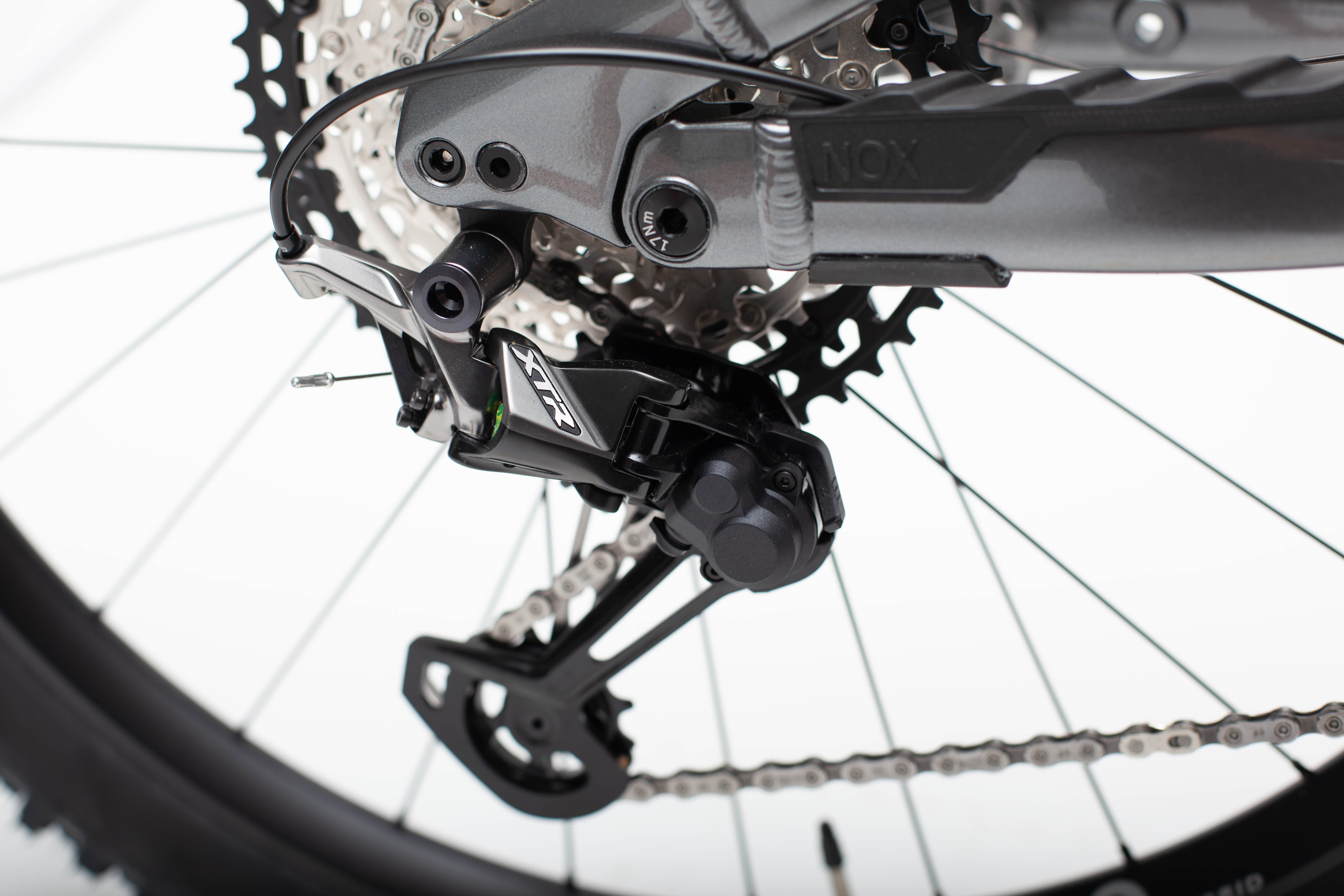

Rear Derailleur	SHIMANO Deore XT M8130 Linkglide 11-speed	SHIMANO XTR RD-M9100 12-speed
Front brake disc	SHIMANO SM-RT66, 220 mm	SHIMANO SM-RT66, 220 mm

	S	XL selected
A Top tube	587 mm	656 mm
B Reach	403 mm	474 mm
C Stack	617 mm	627 mm
D Seat tube	400 mm	499 mm
E Chain stay	446 mm	446 mm
F Steering angle	64,2 °	64,2 °
G Seat angle	73,2 °	73,2 °
H BB drop	11 mm	10 mm
I Wheel base	1202 mm	1277 mm
J Head tube	125 mm	135 mm
K Standover height	858 mm	865 mm
