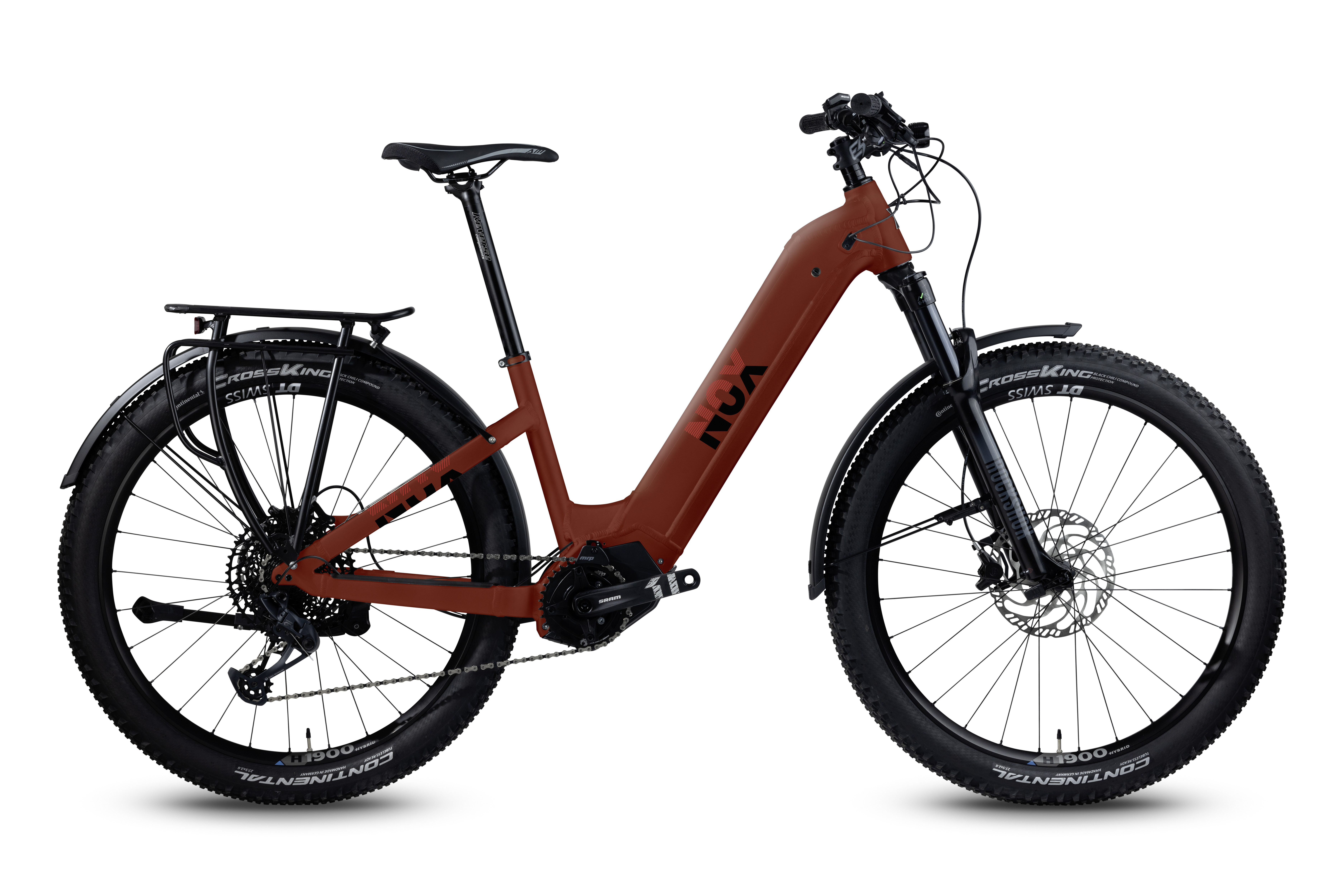

HYBRID XC TOUR Deep Entry P3

HYBRID XC TOUR Deep Entry / 112 Nm

Just hop on and ride with ease.

You’re looking for a bike that’s off-road capable but also feels right at home in the urban jungle – and one you can always mount comfortably? A robust, reliable bike for commuting during the week and escaping into nature on the weekends? A bike that lightens your load and is always a dependable companion?

If you answered YES to these questions, then our NOX HYBRID XC TOUR is the SUV among e-bikes – perfect for anyone who wants to look good both in the city and out on the trails. Now available for the first time in a deep-entry version.

High-End Drive System
BMZ RS (48V, 250W, 112Nm)
High-Performance replaceable battery
BMZ URV8 / 650 Wh
NOX high-performance aluminum full-frame
Flip-Chip Drop Out
Boost Standard
High-End displays / remotes + smartphone connection
Trekking-specific components (e-bike optimized and certified)
Front light (700 lm)
Rear rack with integrated taillight (up to 25 kg payload)
Mudguards
Kickstand
Mounts for trailer adapter for child trailer, etc.
Tested beyond standard requirements (EFBE Test)
Voluntary manufacturer´s guarantee on frame and swing arm + Crash Replacement Service (CRS)

Weight / Size M: ca. 26 kg

Permissible total weight: 150 kg

	Comp	Expert selected
Motorset	BMZ RS / 112Nm	BMZ RS / 112Nm
Battery	BMZ RS V10 / 720Wh (48V)	BMZ RS V10 / 720Wh (48V)
Fork	ROCKSHOX 35 Silver TK 27,5"+ 120mm	ROCKSHOX 35 Gold RL 27,5"+ 120mm
Rack	RACKTIME RT Shine Evo due mit Rücklicht und Kabel	RACKTIME RT Shine Evo due mit Rücklicht und Kabel
Stem	REVERSE E-XC 60/6°/Ø31.8mm	REVERSE E-XC 60/6°/Ø31.8mm
Frame	NOX Hybrid XC Hard Tail NHPA	NOX Hybrid XC Hard Tail NHPA
Grips	ODI Elite Flow Lock-on 2.1	ODI Elite Flow Lock-on 2.1
Fender	SKS Bluemels U75	SKS Bluemels U75
Lights	SUPERNOVA M99 Mini pro 25	SUPERNOVA M99 Mini pro 25
Saddle	REVERSE Components	REVERSE Components
Display	SIGMA EOX View 1300	SIGMA EOX View 1300
Headset	FIRST NOX Components ZS44/56	FIRST NOX Components ZS44/56
Cassette	SHIMANO LinkGlide CS-LG600 10-speed 11-43T	SHIMANO LinkGlide CS-LG600 11-speed 11-50T
Crankset	FSA	FSA
Handlebar	REVERSE E-Element ERGO 740 - Ø31.8/R40mm	REVERSE E-Element ERGO 740 - Ø31.8/R40mm
Kickstand	URSUS King XL	URSUS King XL
Rear tire	CONTINENTAL Ruban ShieldWall foldable skin SL	CONTINENTAL Ruban ShieldWall foldable skin SL
Seat Post	LIMOTEC A1 30,9/150mm	LIMOTEC A1 30,9/150mm
Front tire	CONTINENTAL Ruban ShieldWall foldable skin SL	CONTINENTAL Ruban ShieldWall
Rear brake	SHIMANO rear BL-MT401/BR-MT420	SHIMANO rear BL-MT401/BR-MT420
Rear Wheel	DT SWISS H1900 Spline 27,5" HR 35mm	DT SWISS H1900 Spline 27,5" HR 35mm
Front brake	SHIMANO front BL-MT401/BR-MT420	SHIMANO front BL-MT401/BR-MT420
Front Wheel	DT SWISS H1900 Spline 27,5" VR 35mm	DT SWISS H1900 Spline 27,5" VR 35mm
Shifter right	SHIMANO DEORE SL-M5130 10-speed LG	SHIMANO XT SL-M8130 11-speed LG
Rear Derailleur	SHIMANO DEORE RD-M5130 10-speed LG	SHIMANO XT RD-M8130 11-speed LG

	S	M	L	XL selected
A Top tube	588 mm	595 mm	619 mm	639 mm
B Reach	415 mm	423 mm	447 mm	467 mm
C Stack	641 mm	641 mm	641 mm	641 mm
D Seat tube	395 mm	435 mm	480 mm	530 mm
E Chain stay	466 mm	466 mm	466 mm	466 mm
F Steering angle	67,2 °	67,2 °	67,2 °	67,2 °
G Seat angle	74,4 °	74,4 °	74,4 °	74,4 °
H BB drop	46 mm	46 mm	46 mm	46 mm
I Wheel base	1179 mm	1187 mm	1210 mm	1230 mm
J Head tube	125 mm	125 mm	135 mm	135 mm
K Standover height	457 mm	459 mm	457 mm	459 mm
