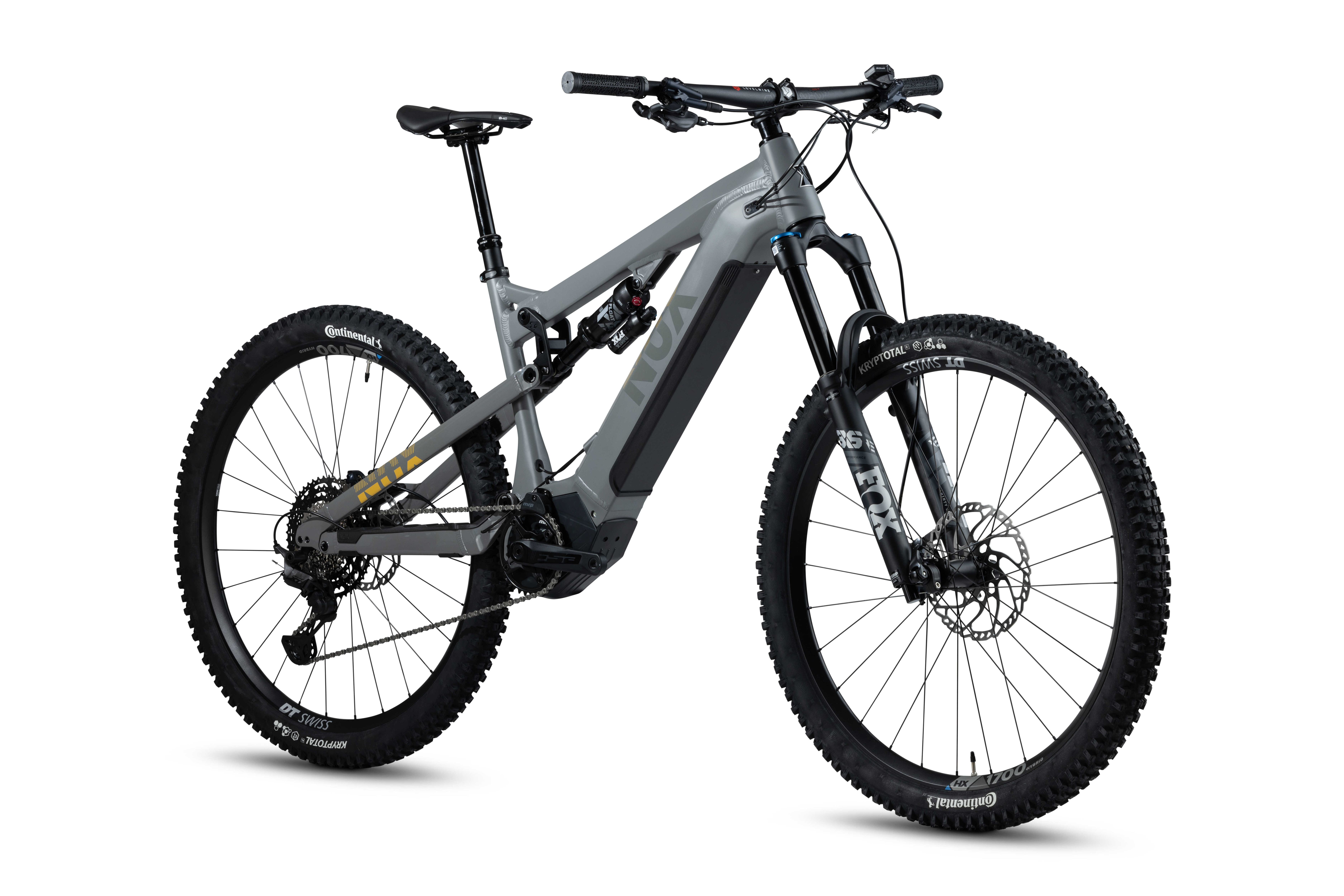

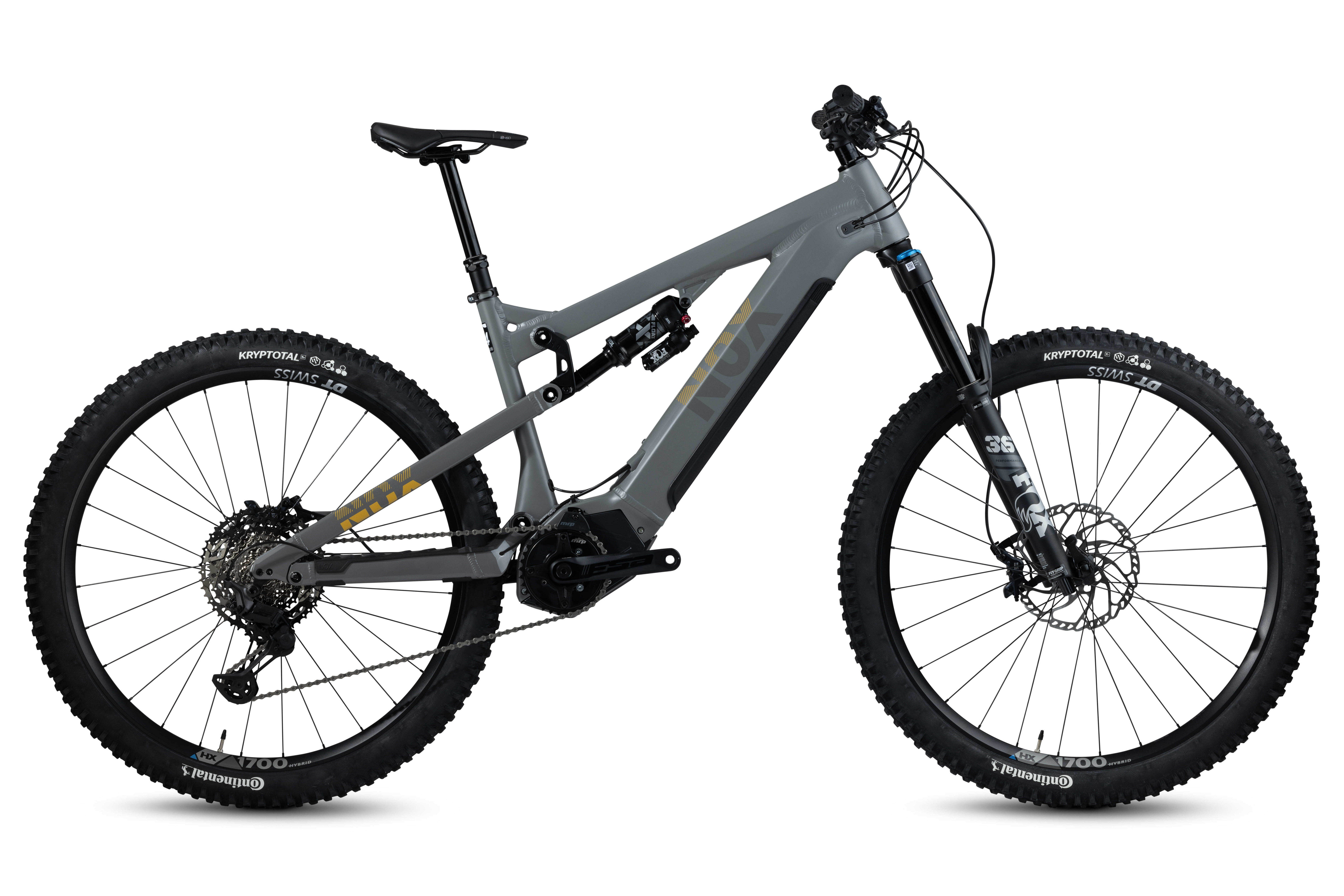

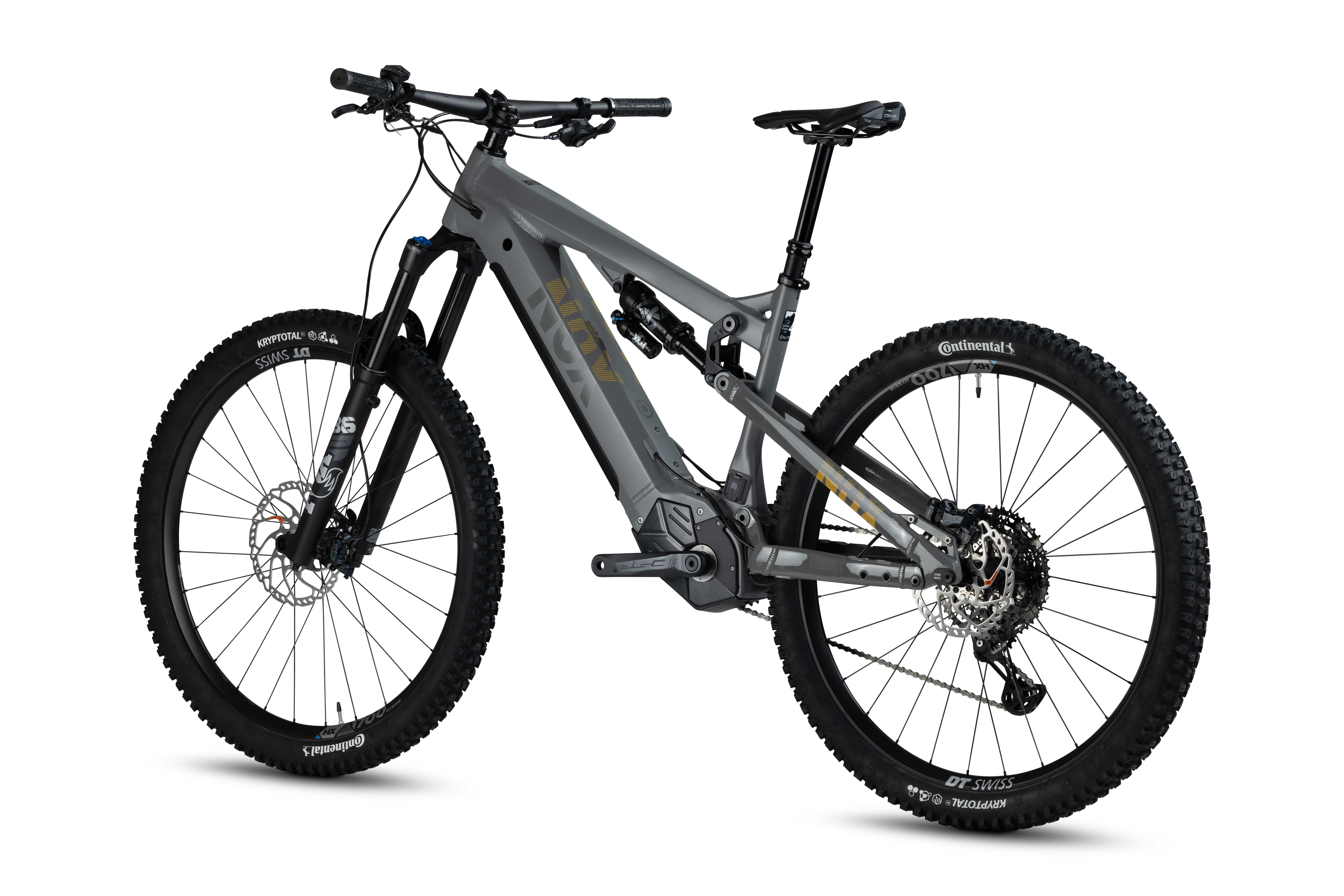

HYBRID ALL-MTN 5.9 P3

HYBRID ALL-MTN 5.9 / 112 Nm

Maximum power for every terrain.

You’re looking for an e-mountain bike that’s ready to take on all your routes – from local trails to full alpine crossings – and truly does it all? You’re tired of burning out on steep climbs or relying on lifts? You want a reliable, robust bike with top-quality components – all at a fair price?

If you answered YES to these questions, then our NOX HYBRID ALL-MOUNTAIN 5.9 with 160 mm of travel is just the bike for you. A ride that’s built to stick with you through every adventure – no matter how tough the trail gets!

	Core	Pro selected	Ultra
Motorset	BMZ RS / 112Nm	BMZ RS / 112Nm	BMZ RS / 112Nm
Battery	BMZ RS V10 / 720Wh (48V)	BMZ RS V10 / 720Wh (48V)	BMZ RS V10 / 720Wh (48V)
Fork	MARZOCCHI Bomber Z1 29in 160 Grip Sweep-Adj Rake YB AM	FOX FLOAT 29in P-S E-Optimized 160 Grip 3Pos	FOX 36 FLOAT 29in F-S E-Optimized 160 Grip 2 HSC LSC HSR LSR
Stem	REVERSE Stem E-Black-ONE 50mm Ø35mm	REVERSE Stem E-Black-ONE 50mm Ø35mm	REVERSE Stem, Black-One Enduro Titan D Ø35mm L 35mm
Frame	NOX Hybrid All Mountain 150mm NHPA	NOX Hybrid All Mountain 150mm NHPA	NOX Hybrid All Mountain 150mm NHPA
Grips	REVERSE Stamp Single Lock-On	REVERSE Stamp Single Lock-On	REVERSE Stamp Single Lock-On
Saddle	REVERSE Components	REVERSE Components	REVERSE Components
Headset	FIRST NOX Components ZS44/56	FIRST NOX Components ZS44/56	FIRST NOX Components ZS44/56
Cassette	SHIMANO LinkGlide CS-LG600 10-speed 11-43T	SHIMANO LinkGlide CS-LG600 11-speed 11-50T	SHIMANO XT CS-M8100 12-speed 10-51T
Crankset	FSA	FSA	FSA
Handlebar	REVERSE Handlebar E-Element 800mm Ø35/R25mm	REVERSE Handlebar E-Element 770mm Ø35/R25mm	REVERSE Handlebar Carbon Seismic Ø35/R20
Rear tire	CONTINENTAL Kryptotal-R Trail Endurance foldable skin SL	CONTINENTAL Kryptotal-R Enduro Soft foldable skin SL	CONTINENTAL Kryptotal-R Enduro Soft foldable skin SL
Seat Post	LIMOTEC A1 30,9/150mm	FOX Transfer P-SE A Ø 30.9mm 150mm Drop Internal AM	FOX Transfer F-S K Ø 30.9mm 150mm Drop Internal AM
Front tire	CONTINENTAL Kryptotal-F Trail Endurance foldable skin SL	CONTINENTAL Kryptotal-F Enduro Soft foldable skin SL	CONTINENTAL Kryptotal-F Enduro Soft foldable skin SL
Rear brake	SHIMANO rear BL-MT401/BR-MT420	SHIMANO rear BL-M6100/BR-M6120	SHIMANO XT rear BL-M8100/BR-M8120
Rear shock	FOX FLOAT DPS P-S A 3pos Evol LV Nox Comp	FOX FLOAT X P-S A 2pos Evol LV Nox Expert	FOX FLOAT X F-S K 2pos-Adj Evol LV FOX AM
Rear Wheel	DT SWISS H1900 29" HR 30mm	DT SWISS HX1700 29" HR 30mm	DT SWISS HX1501 29" HR 30mm
Front brake	SHIMANO front BL-MT401/BR-MT420	SHIMANO front BL-M6100/BR-M6120	SHIMANO XT front BL-M8100/BR-M8120
Front Wheel	DT SWISS H1900 29" VR 30mm	DT SWISS HX1700 29" VR 30mm	DT SWISS HX1501 29" VR 30mm
Shifter right	SHIMANO DEORE SL-M5130 10-speed LG	SHIMANO XT SL-M8130 11-speed LG	SHIMANO XT SL-M8100 12-speed I-spec EV
Rear Derailleur	SHIMANO DEORE RD-M5130 10-speed LG	SHIMANO XT RD-M8130 11-speed LG	SHIMANO XT RD-M8100 12-speed

	S	M selected	L	XL
A Top tube	584 mm	607 mm	633 mm	656 mm
B Reach	415 mm	439 mm	462 mm	486 mm
C Stack	609 mm	609 mm	618 mm	618 mm
D Seat tube	400 mm	417 mm	453 mm	499 mm
E Chain stay	466 mm	466 mm	466 mm	466 mm
F Steering angle	65,3 °	65,3 °	65,3 °	65,3 °
G Seat angle	74,3 °	74,3 °	74,3 °	74,3 °
H BB drop	5 mm	5 mm	5 mm	5 mm
I Wheel base	1212 mm	1235 mm	1263 mm	1286 mm
J Head tube	125 mm	125 mm	135 mm	135 mm
K Standover height	853 mm	855 mm	860 mm	861 mm
